High Speed automatic double heads board feeding and applying glue machine ,cardboard coating glue machine, anilox roller gluing

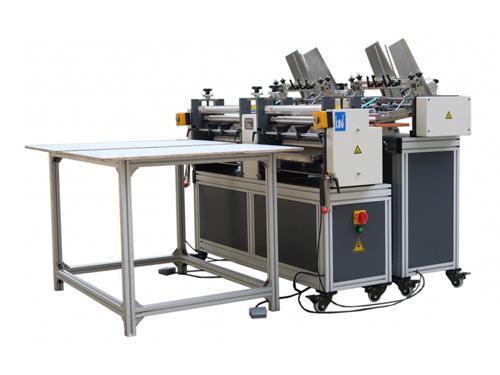

The high speed automatic board feeding and applying glue machine is used for automatic paper feeding after the children's book pages are arranged and manually stacks the pages after the glue is applied. It has two paper feeding mechanisms, which can work separately and together. The gluing mechanism is designed with the anilox roll for gluing, which not only saves glue but also maintains the shape of the gluing product. The machine is used to replace manual feeding to ensure the precise control of production rhythm and stable production.
|Maximum size of paper to glue on(W*L) ||440x300mm |
|Minimum size of paper to glue on(W*L) ||50x80mm |
|The range of paper to mount ||300gsm-800gsm |
|Maximum speed ||10000pcs/h |
|Total power ||1.8kw |
|Net weight ||550kg |
|Dimension(L*W*H) ||1630x1000x1450mm |

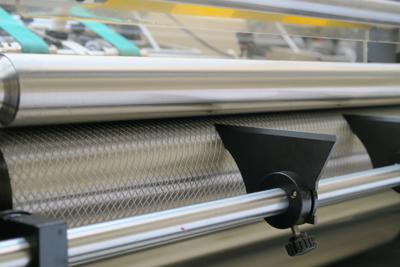

The anilox roll is used for gluing, which can save glue and makes the thickness of the glue adjustable.

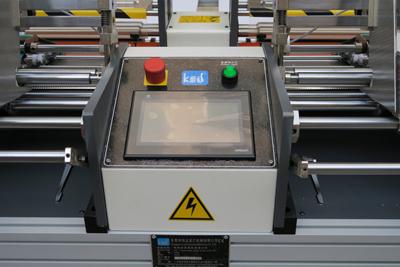

The high-speed pasting machine has a control panel for operation with the Chinese and English mode which can be automatically switched.
The paper delivery system has paper detection functions, which only allows one sheet to pass at a time. If two or more sheets of paper pass at the same time, the device will automatically block and suspend operation.
- The device has two paper feeders that can be separately controlled to work separately or together in order to be flexibly adjusted according to the production capacity.
Shengyou is is an experienced manufacturer of paper folding equipment and children book equipment founded in 2000. We provide customers with high quality paper folding machines, book card pasting machines, board to board pasting machines, and auxiliary equipment including buckles for paperboard folding machine, electric folding knife for paper folder. What's more, we offer a variety of paper folding solutions to meet customer needs according to the various paper formats, paper typesets, and paper size and thickness. Our company has the ability to design, manufacture and sell buckle folders and children book machines independently.
