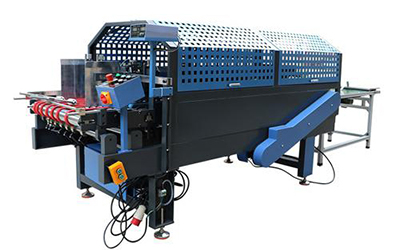

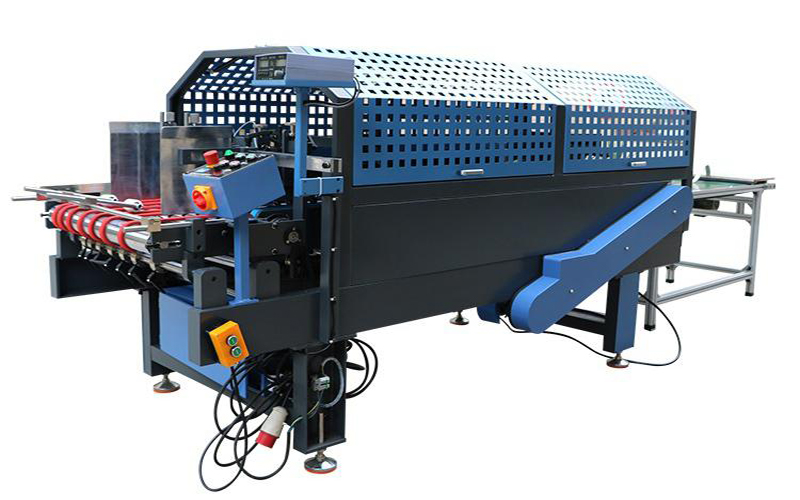

High Speed Paperboard Folding Machine for Paper Board Folding, Grey Board Folding, White Cardboard Folding
The paperboard folding machine is used for sheet folding of card paper books, such as grey board, white cardboard and so on. The machine can press the spine itself, and the pressure is adjustable. Paper which is folded by the machine doesn’t need to be pressed again.
The folding speed of the machine is 40,000 sheets/hour, and the feeding platform size is 600*600mm. It can handle paper with a thickness within 200gsm-800gsm. The machine can automatically count the number of the processed papers.
|Maximum size of paper to glue on(W*L) ||600x600mm |
|Minimum size of paper to glue on(W*L) ||150x80mm |
|The range of paper to mount ||200gsm-800gsm |
|Maximum speed ||40000pcs/h |
|Total power ||4kw |
|Net weight ||850kg |
|Dimension(L*W*H) ||4300x1300x1300mm |

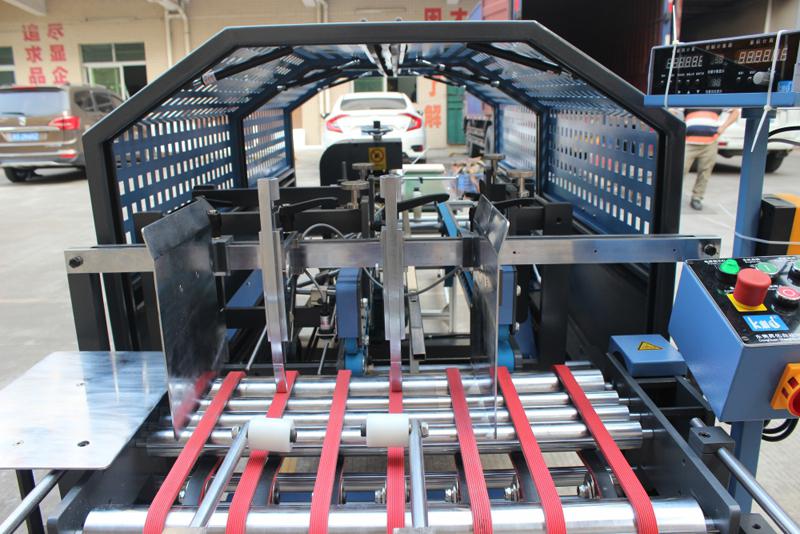

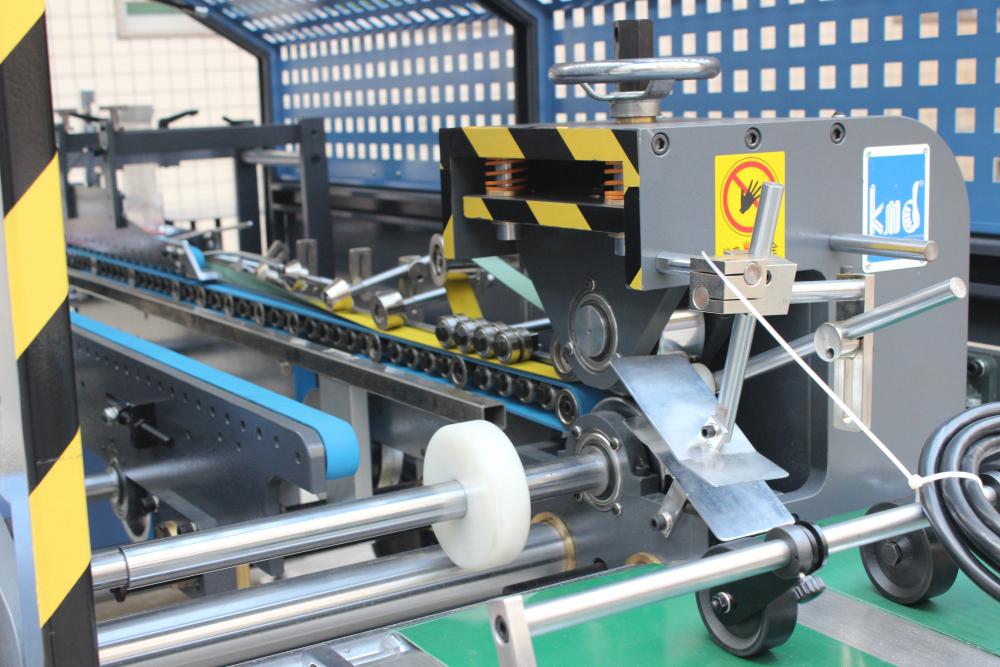

The feeding device has a paper thickness detecting function, and only allows one piece of paper to pass at one time. When two or more sheets of paper are passing at the same time, the baffle will automatically block and the machine operation is suspended. The transmission has a non-slip belt to ensure that the card paper does not slip.

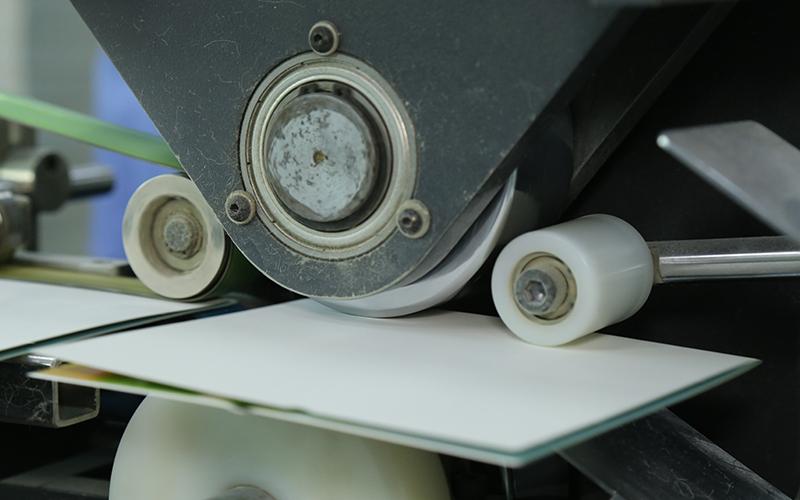

The pressing device can compact the center line of the paper, making the paper being folded better. The pressure of the machine can be adjusted.

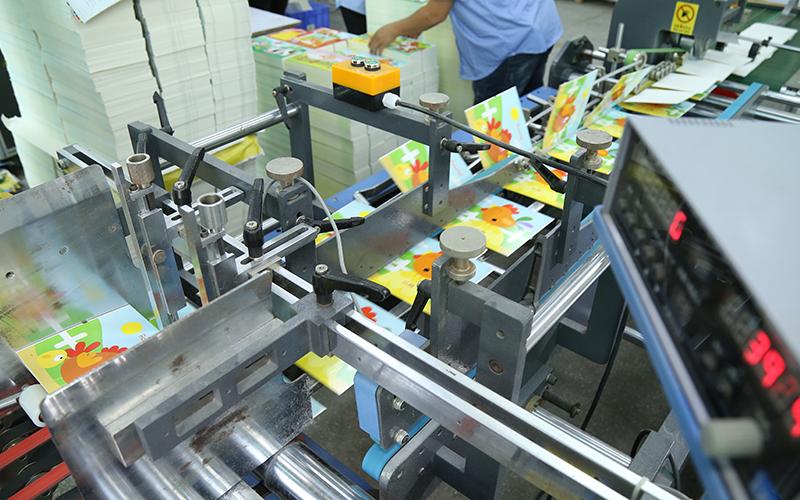

The guide lever can control the position of the center line of the card paper. When the folding is uneven, the position of the center line can be controlled by adjusting the guide lever.
- Paper stacker:

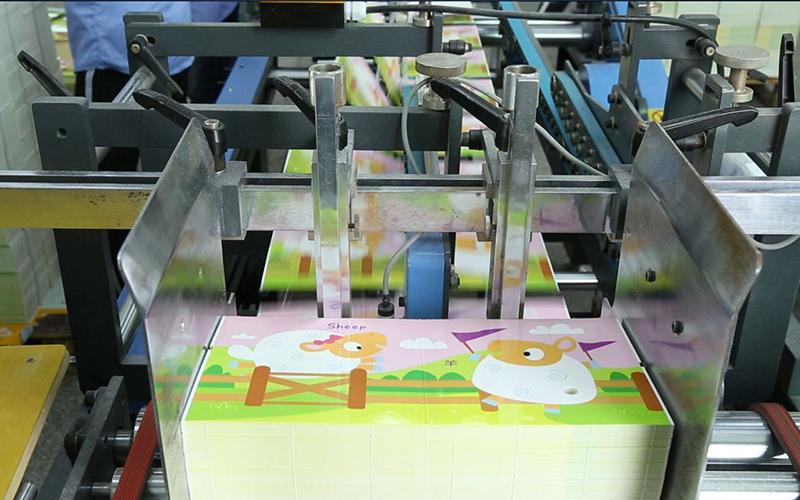

The paper stacker has a timing function, which can make the machine pause for a small while when the paper on the delivery tray reaches the limited number set before.
