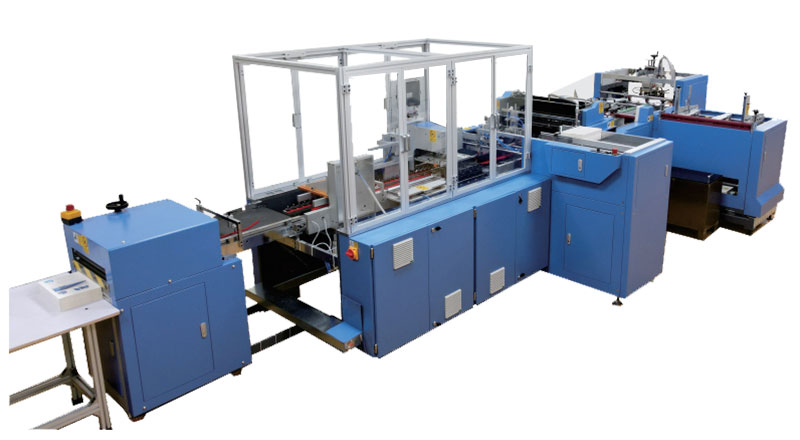

KMD Fully Automatic Board Book Casing-In Machine

Automatic board book casing-in machine is perfect for applying covers to children's board books after lamination. It can replace the work of 10 employees, delivering consistently high-quality results. Its innovative partial gluing method saves up to 50% of glue and reduces moisture, helping to prevent deformation after the cover is applied.

• Automatic board book casing-in machine uses servo controllers for adjustments, automating 90% of the setup process for higher precision and easier operation.
• Constructed from a 20mm thick steel plate and machined in a single process on a large-scale machine tool, this automatic hardcover casing-in equipment ensures exceptional stability and durability.
• Children's board books machine is designed to be both smarter and safer. Areas prone to paper jams, which require manual intervention, have been optimized with effective configurations and program protections to ensure user safety.
• The cover feeder utilizes a dual feeding unit with computer-controlled switching. The top suction feeder, similar to those used in printing presses, is more efficient for standard covers, minimizing double cover feeding and accommodating irregularly shaped covers. This flexibility saves labor and broadens the range of applicable products.

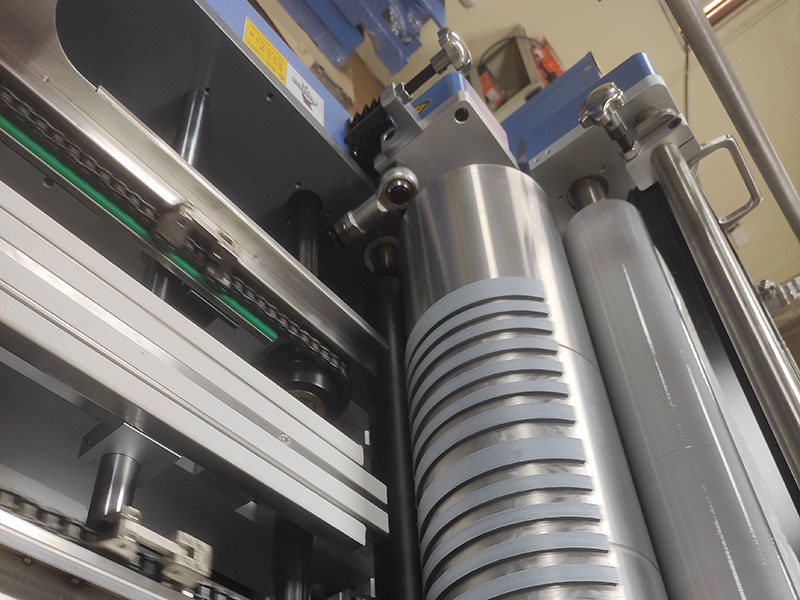

• The gluing unit uses the same device as our board book pages pasting & glue binding line, featuring high-precision micro-adjustment capabilities for left-right and front-back adjustments. This makes our casing-in equipment more intelligent and automated compared to the fixed, non-adjustable systems.
• The casing-in and joint-setting operations are completed in a single step. The blade can be adjusted to accommodate different cover materials, allowing for various joint effects.
• With high paper sheet alignment accuracy of the book block, this latest automatic casing-in machine can directly complete the casing-in process. The error is within 0.5mm to 1mm, significantly saving labor and steps in the process.
